Industrial IEC 60309 2 Waterproof Plug Socket 5 Pole 6 H Earth Position

Name: Industrial IEC 60309 2 Waterproof Plug Socket 5 Pole 6 H Earth Position
Brand: HYPER
Price: 1 USD

Brand Name : HYPER

Model Number : 1983

Certification : DIN VDE 0623 EN/IEC 60309-2

Place of Origin : China

MOQ : 500pcs

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100,000pcs / month

Delivery Time : 15 days

Packaging Details : packed by standard paper carton

Name : Inlet

Poles : 5 poles

Current & Voltage : 125 amps & 400 volts

Hertz : 50-60 HZ

Earth position : 6 h

Protection type : IP67 Water resistance

Contact Now

5P 125A IP67 Water Resistant Panel Mount Inlet Third Generation Industrial Plug Straight part no. 1983

Description:

IEC 60309-2 connectors are produced in many variants, designed so that a plug of one type can only be inserted into a socket of the same type. Different current ratings (such as 16 A, 32 A, 63 A and 125 A) are distinguished by different diameters of the circular housing.

Part no. 1983

Technique Parameter:

Current	Poles	110V 50a.60Hz	230V 50a.60Hz	400V 50a.60Hz	500V 50a.60Hz	>50-500V 100-300Hz	>50-500V a.300-500Hz	Package Unit	Weight
Current	Poles	3P 4P 5P 4h 4h 4h	3P 4P 5P 6h 9h 9h	3P 4P 5P 9h 6h 6h	3P 4P 5P 7h 7h 7h	3P 4P 5P 10h 10h 10h	3P 4P 5P 2h 2h 2h	PCS/BOX	G/PC
125A	3		3665					5	890
	4		3413	3583	3600			5	1005
	5			1983				5	1130

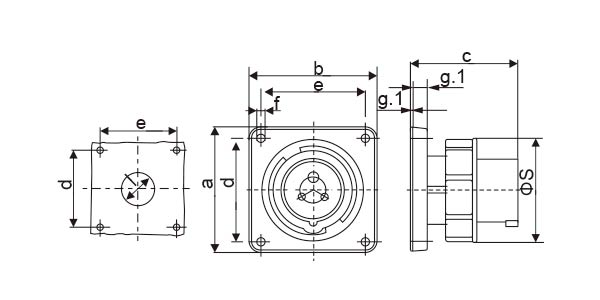

Current	Poles	a	b	c	d	e	f	g	g.1	l	s
125A	3	130	130	112	104	104	6.5	18	2	95	132
	4	130	130	112	104	104	6.5	18	2	95	132
	5	130	130	112	104	104	6.5	18	2	95	132
Conductor cross-sectional area(mm²)Min To Max 25-35

Product Dimension:

Industrial IEC 60309 2 Waterproof Plug Socket 5 Pole 6 H Earth Position
