313 3P 16A 220V Straight Industrial Plug Sockets IP44 Waterproof With Blue Cover

Name: 313 3P 16A 220V Straight Industrial Plug Sockets IP44 Waterproof With Blue Cover
Brand: HYPER
Price: 1 USD

Buy cheap 313 3P 16A 220V Straight Industrial Plug Sockets IP44 Waterproof With Blue Cover product

Brand Name : HYPER

Model Number : 313

Certification : DIN VDE 0623 EN/IEC 60309-2

Place of Origin : China

MOQ : 500pcs

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100,000pcs / month

Delivery Time : 15 days

Packaging Details : packed by standard paper carton

Material : PA

Pole : 2P + E

Voltage : 220/240V

Current : 16A

Protection Type : IP44 Waterproof

Cover Color : Blue

Contact Now

313 3P 16A 220V Straight Industrial Socket IP44 Waterproof With Blue Cover

Description:

This model industrial socket is the third generation industrial socket, the quality is better than the old models, the socket is IP44 water resistance and we also have other models with IP67 waterproof.

Application:

Provide different series products for different environment

Resistance to bad weather and ageing

Good space stability and accuracy

Good resistance to acid and alkali

Effectively prevent power outages and leakage

Technique Parameter:

Current	poles	110V	230V	400V	500V	＞50-500	＞50-500	Packing unit	Weight
Current	poles	50a.60Hz	50a.60Hz	50a.60Hz	50a.60Hz	100-300Hz	a.300-500Hz	Packing unit	Weight
3pole	4pole	5pole	3pole	4pole	5pole	3pole	4pole	5pole	3pole
4h	4h	4h	6h	9h	9h	9h	6h	6h	7h
16	3		313					40Pcs	97g/Pc

Ground level	6h
rated current (A)	16
pole	3
specifications ( mm)	a	70
b	70
c	30
d	58
e	58
f	72.5
g	64
h	51.8
i	12.3
j	51
k	5.5
l	40.5
Conductor crosssectional area(mm²)	1.5-2.5

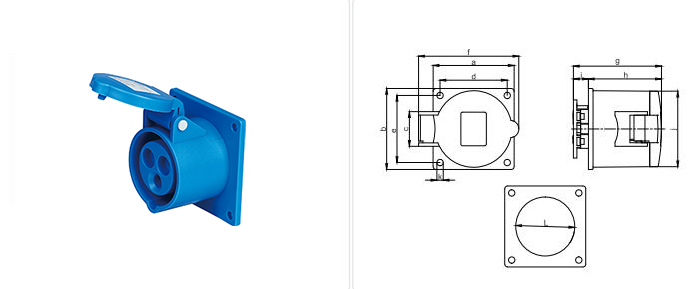

Product Dimension:

313 3P 16A 220V Straight Industrial Plug Sockets IP44 Waterproof With Blue Cover

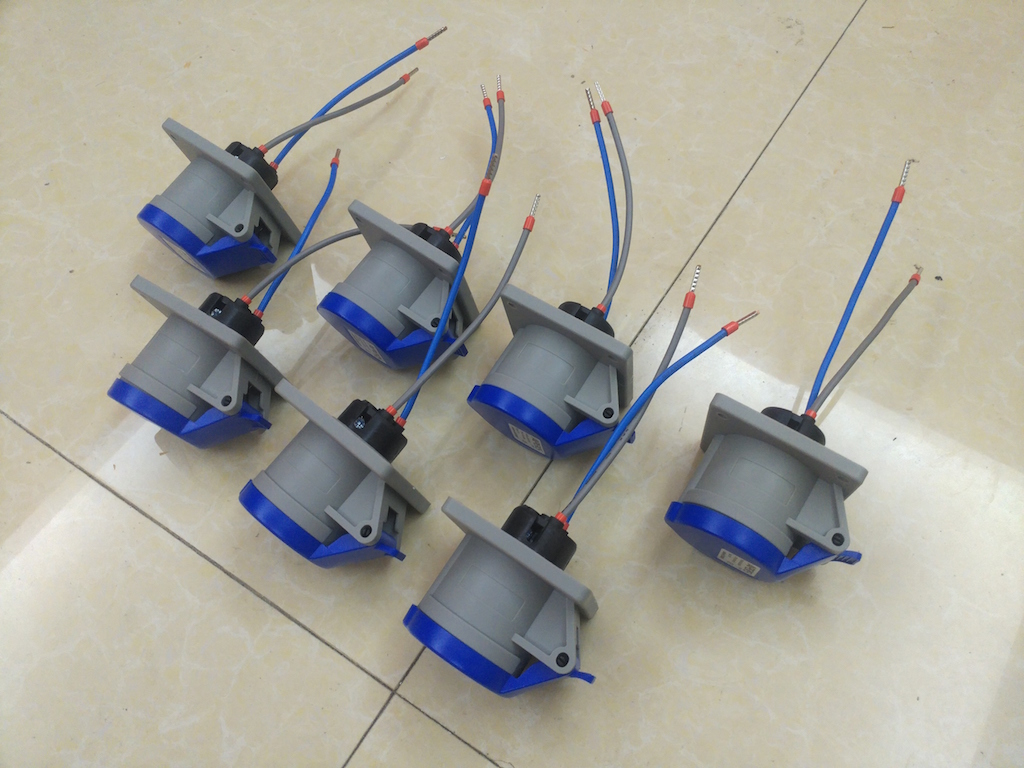

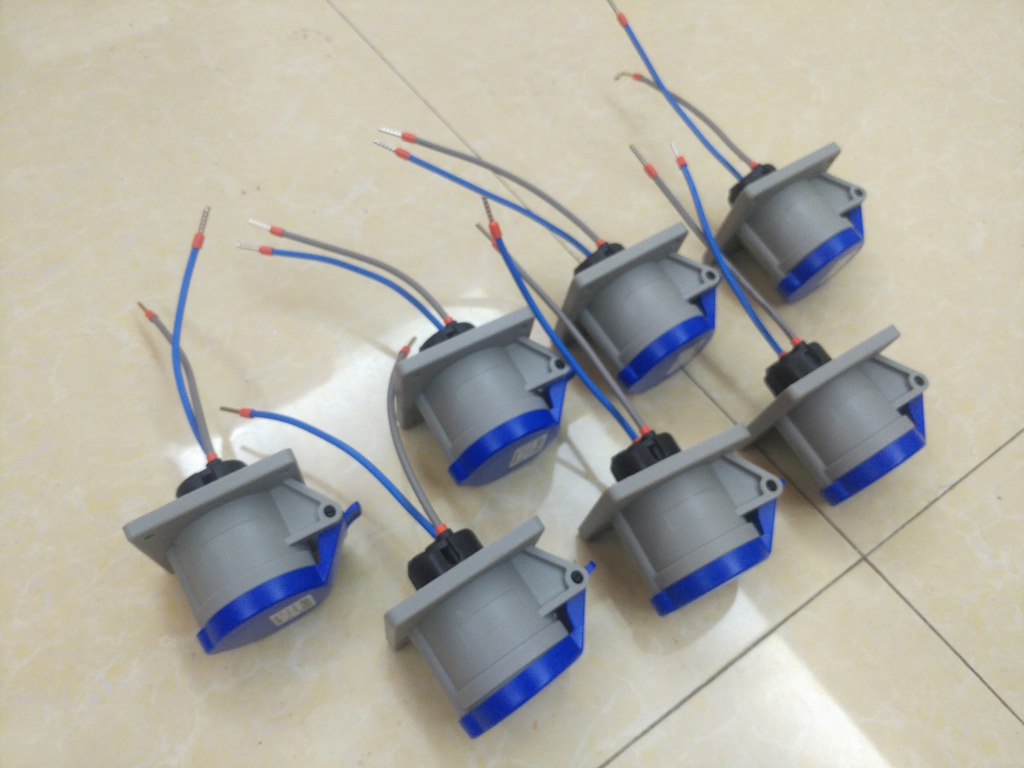

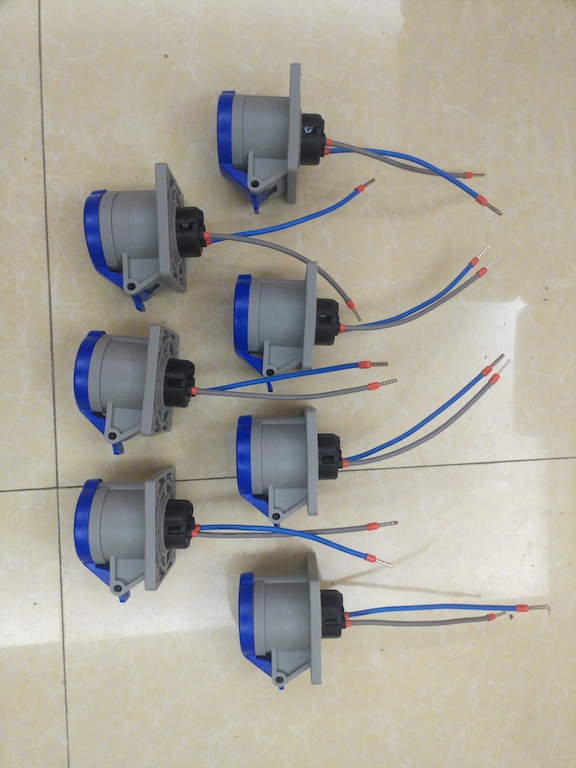

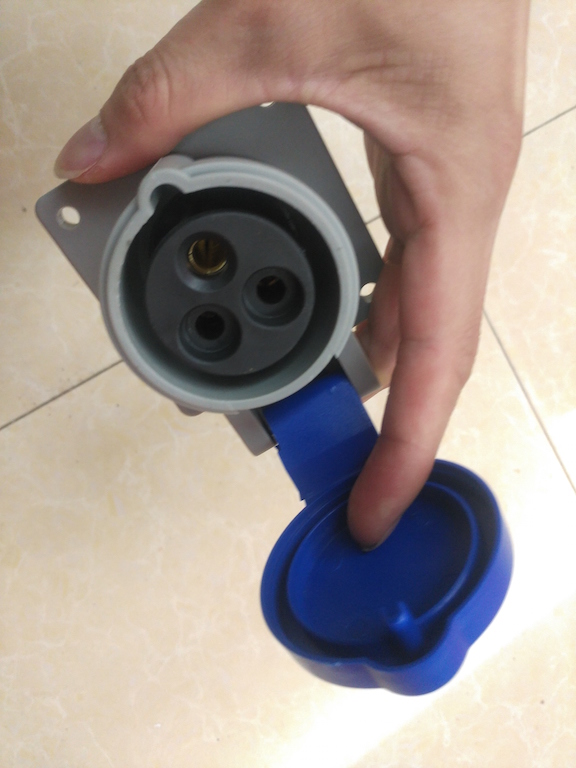

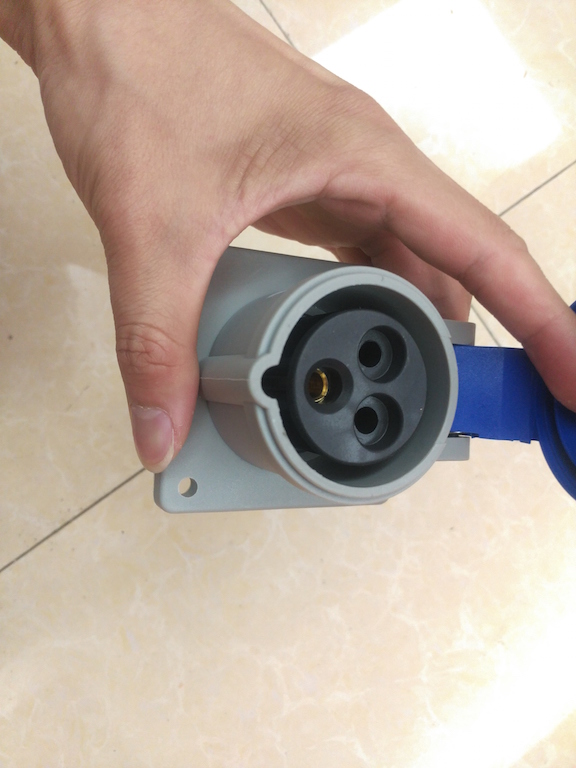

Picture:

313 3P 16A 220V Straight Industrial Plug Sockets IP44 Waterproof With Blue Cover
